Product Details

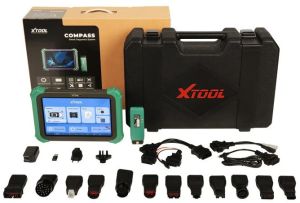

The COMPASS (and COMPASS MASTER) is a flagship smart diagnostic tablet built for automotive professionals. Considered the smaller version the the Prodigy, the Compass features a 10.1" 1920×1200 display, octa-core performance (2.2 GHz + 1.8 GHz), 8 GB RAM, and 128 GB storage on Android 10. Dual-Wi-Fi, long-lasting 6400 mAh battery, and 8 MP camera support uninterrupted, efficient diagnostics. It supports DoIP, CAN FD, J2534 (master model), topology mapping, ADAS calibration, widespread vehicle compatibility, and includes a 3-year software subscription.
Key Benefits of Diagnostic Tools – XTOOL COMPASS
Ø Featuring the Autodata-powered online informatics database
Ø Simultaneous internet & VCI connectivity via Dual-Wi-Fi
Ø Supports advanced protocols: DoIP, CAN FD, and standard diagnostics
Ø Broad compatibility across U.S., European, and Asian brands—including Tesla
Ø ADAS calibration for both camera and radar systems
Ø Includes PreSCAN/PostSCAN diagnostic reporting, OBDI connectors, AutoAuth™ for FCA SGW, and 3-year software updates
Ø Long-lasting diagnostics with extended battery life and built-in 8 MP rear camera
Ø Vibrant 10.1" 1920×1200 display with Android 10, octa-core CPU, 8 GB RAM & 128 GB storage
Ø OEM-level programming support via SAE J2534 (standard on COMPASS MASTER; optional on COMPASS)
Ø Intuitive topology mapping with color-coded system status for rapid fault identification
Ø Comprehensive diagnostic workflow: offline programming (Ford, Lincoln, Mazda), online coding/programming (VAG, BMW, Mercedes-Benz)
PARAMETERS
|
Processor |
2.2GHzA73×4+1.8GHzA53x4 |
|
OS |
Android 10 |
|
Storage (RAM+ROM) |
8+128G |
|
Display |
10.1'' 1920x1200 |
|
Camera (rear) |
8MP |
|
Connectivity |
USB Type-C VGA |
|
Battery (mAh) |
6400, 7.2V |
|
WiFi |
WiFi 2.4/5 Ghz |
|
Bluetooth |
BLE 5.0 |
|
Working Temp. |
0~40°℃ |
|
Storage Temp. |
-10~50℃ |
|
Vehicle Volt. |
9~36V |
|
Communication Method |
Wi-Fi, USB |
|
Free Update |
3 YEARS |
|
FCA SGW License |
Support (2018 and later) |
|
Compatible Protocols |
CAN FD, DoIP, (Compass MasterJ2534) |
J2534 SUPPORTED BRAND
Acura, Audi, BMW, Ford, GM, Honda, Hyundai, Jaguar, KIA, Landover, Lexus, Mazda, MB, Mitsubishi, Nissan, Subaru, Toyota, VW, FCA
Vehicle Coverage
Asian: Tata (India), Mahindra (India), Maruti (India), Hyundai, KIA, Toyota, Honda, Nissan, ISUZU, Mitsubishi and many more
American: Ford, Chevrolet, GM, Jeep, Fiat and many more
European: Audi, Benz, BMW, VW, Skoda, Bentley, Volvo, Jaguar, Land rover, Renault and many more
Free Software update: 3 years from date of software activation
SERVICE FUNCTION
|
Instrument cluster |
VIN Write |
EEPROM |
Air Bag Reset |
|
ECU configuration |
Suspension Calibration |
DPF Regeneration |
BMS reset |
|
Headlight |
Throttle |
EPB config. |
EPS Config. |
|
Oil reset |
Transport mode |
Tire size setting |
Gear box Adaption |
|
ABS bleeding |
Electronic pump activation |
TPMS reset (EU/US/JP/KR/AU) |
Language change |
|
Stop/start reset |
A/F reset |
Cylinder |
ADAS |
|
Speed |
Clutch adaption |
SRS |
EGR Relearn |
|
FRM Reset |
VGT learn |
HV battery |
AC Relearn |
|
Rain/light sensor |
Control unit reset |
ADBLUE Reset |
CAMSHAFT Sensor learning |
|
Coolant replacement |
Power Balance |
SAS |
EVAP Test |
|
Fuel pump priming |
Gateway calibration |
Glow plug reset |
GPF regeneration |
|
Injector coding |
Fuel injector calibration |
Head light adjustment |
Nox reset |
|
Active electronic water pump |
RADAR Calibration |
Odometer read |
RPS calibration |
|
Sear calibration |
Speed limit |
Sunroof initialization |
Transmission oil reset |
|
Crank sensor relearn |
Windows initialization |
Key programming(Immobilizer) |
|
