Product Details

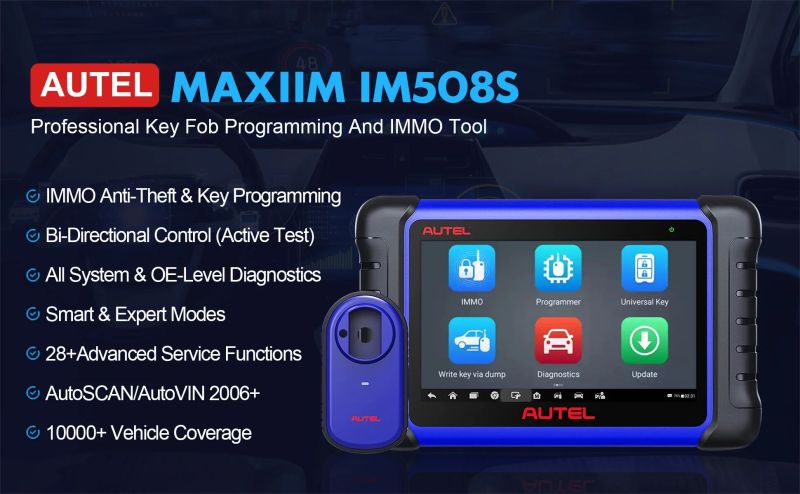

MaxiIM IM508S is a 7-inch, Android-based touch screen tablet with professional key and immobilizer programming functionality, all systems diagnostics, and an extensive service menu. The tablet, which features a quad-core processor and 64 G.B. onboard memory and runs on the powerful Android 11 operating system, offers faster boot up and operation speed. Equipped with the XP200 key programmer, the IM508S can perform key and immobilizer functions, including Key and Remote Control Learning and basic EEPROM and MCU Read and Write capabilities. The IM508S also enables technicians to complete an all-systems diagnostic scan and read and erase codes, view Freeze Frame and Live Data on U.S., Asian, and European vehicles, 1996 and newer. The tablet also features an extensive menu of the most often performed maintenance and service tasks, including oil light reset, brake bleed, battery registration, steering angle sensor reset, and occupancy seat calibration. The IM508S also offers report cloud management, making saving and sharing reports easy.
Note:
MaxiIM IM508S is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner’s permission using the key
Description:
Ø Powerful combination of key and immobilizer programming, all system diagnostics, extensive service menu
Ø Smart Mode for guided and automated key learning
Ø Expert Mode for advanced key learning
Ø Read PIN/CS (all keys lost) key generation, key learning, remote learning
Ø IMMO ECU reset/adaptation, refresh/coding
Ø Transponder read/write, EEPROM/MCU read/write
Ø All Systems diagnostics for U.S., Asian, and European vehicles, 1996 and newer
Ø Extensive Service Menu, including EPB, DPF, SAS, Oil Light Reset, and BMS
Ø Cloud-based report management, allowing you to view device and test records anytime, anywhere
Ø Quad-Core processor
Ø Internal reliable 64GB Memory
Ø Android 11.0 Operating System for fast boot up and multitasking
Ø 7-inch LCD touch screen with 1024 x600 resolution
Specification:
Power and Battery | 5000mAh 3.7V lithium-polymer battery |
Input Voltage | 12V (9-24V) |
Power Consumption | 500mA (LCD on with default brightness, Wi-Fi on)@3.7V |
Operating Temp | 0 to 50°C (32 to 122°F) |
Storage Temp | -20 to 60°C (-4 to 140°F) |
Weight | NW: 0.78 kg (1.72 lb.) |
Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High speed, Middle speed, Low speed and Single wire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
