Futura Auto Key Cutting Machine

The electronic key cutting machine with one cutting station and two interchangeable clamps for duplicating and originating all types of automotive keys, including heavy trucks and motorcycles. Additional keys used for gas cap locks, glove boxes and roof racks are also included in the database.Controlled by a removable 10” (254mm) touch-screen tablet, the Futura Auto guides the user step-by-step in all key cutting operations making it the perfect machine for those just getting into the automotive locksmith business or the seasoned professionals offering roadside services.

Work Efficiencies
• User-friendly software with step-by-step instructions
• Fast key search – simply enter Make/Model/Year and the software guides you through the process
• Details include a cutter holder, tool/accessory holder on top of the machine
• The color-changing LED lights help the operator to immediately see the process status:
• white – the machine is ready to proceed • yellow – the machine is in the process of cutting the key, • green – key cutting is complete, and it is safe to raise the safety shield
• Wi-Fi link between machine and tablet or the user can tether the tablet directly to the machine
• Equipped with two USB ports on the back of the machine; one for tablet recharge and one for the tethering connection so the machine and tablet remain connected and operational even when the Wi-Fi connection is lost or unstable. The second USB port can also be used to connect the supplied USB flash drive to import code tables or machine software updates.

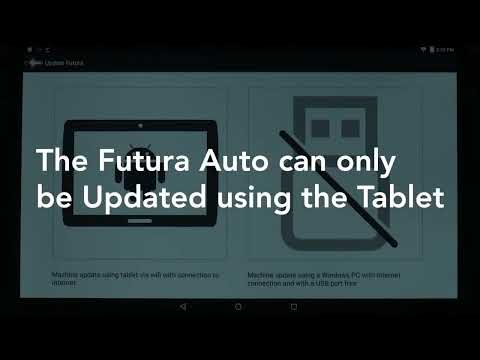

• Step-by-step instructions for updating machine software
• Software Interface with Instacode® and Kreate-A- KeyTM

Edge-Cut Automotive Keys
• 01VA four-sided clamp with an easy rotation system
• The software indicates which of the four jaws to use for each key reference to minimize vibration and maximize the quality of cut (keys are gripped on the milling groove to provide stability when cutting two-sided symmetrical keys)
• Automatic detection of the key blank edge
• Large flip-up gauge for perfectly aligning keys in the jaw
• Decoding by electrical contact
• “Partial cuts” function for broken keys, allows you to decode a portion of the key or enter the known cuts and create a “cutting tree” to minimize the number of keys needed to create a working key

Laser Automotive Keys
• 01RA clamp secures laser keys on the neck of the blade eliminating the need for special jaws or adapters
• Automatic tip detection for tip gauged keys
• Decoding by electrical contact
• Key-cut preview
• The software indicates which of the three cutters provided you should use to optimize the cutting cycle of a laser key allowing you to maximize cut quality and minimize cutter wear

Compact and Lightweight
• Compact, lightweight and portable with ergonomic grip for easy lifting
• Safety shield slides within the machine body making it perfect for small shops and vans
• Removable tablet stand can be locked onto the hood of the machine or placed on the counter

Safety Features
• Transparent safety shield contains chips and isolates moving parts
• All operations are disabled immediately when the safety cover is retracted
• Large emergency stop button on side of the machine

TECHNICAL SPECIFICATIONS:

• Motors: 24V d.c.
• Power Supply: 90/264V a.c - 50/60Hz
• Tool Speed: 12100 RPM
